Hi,
I am in the process of upgrading to Umbraco 17, which in genral is going well, but with a view to our content editors, I see that in Umbraco 17, with the move to the new Rich Text editor, when adding a block so it can be used, the option to link to a file so it can be displayed/rendered in the CMS view has gone. Will this be coming back?

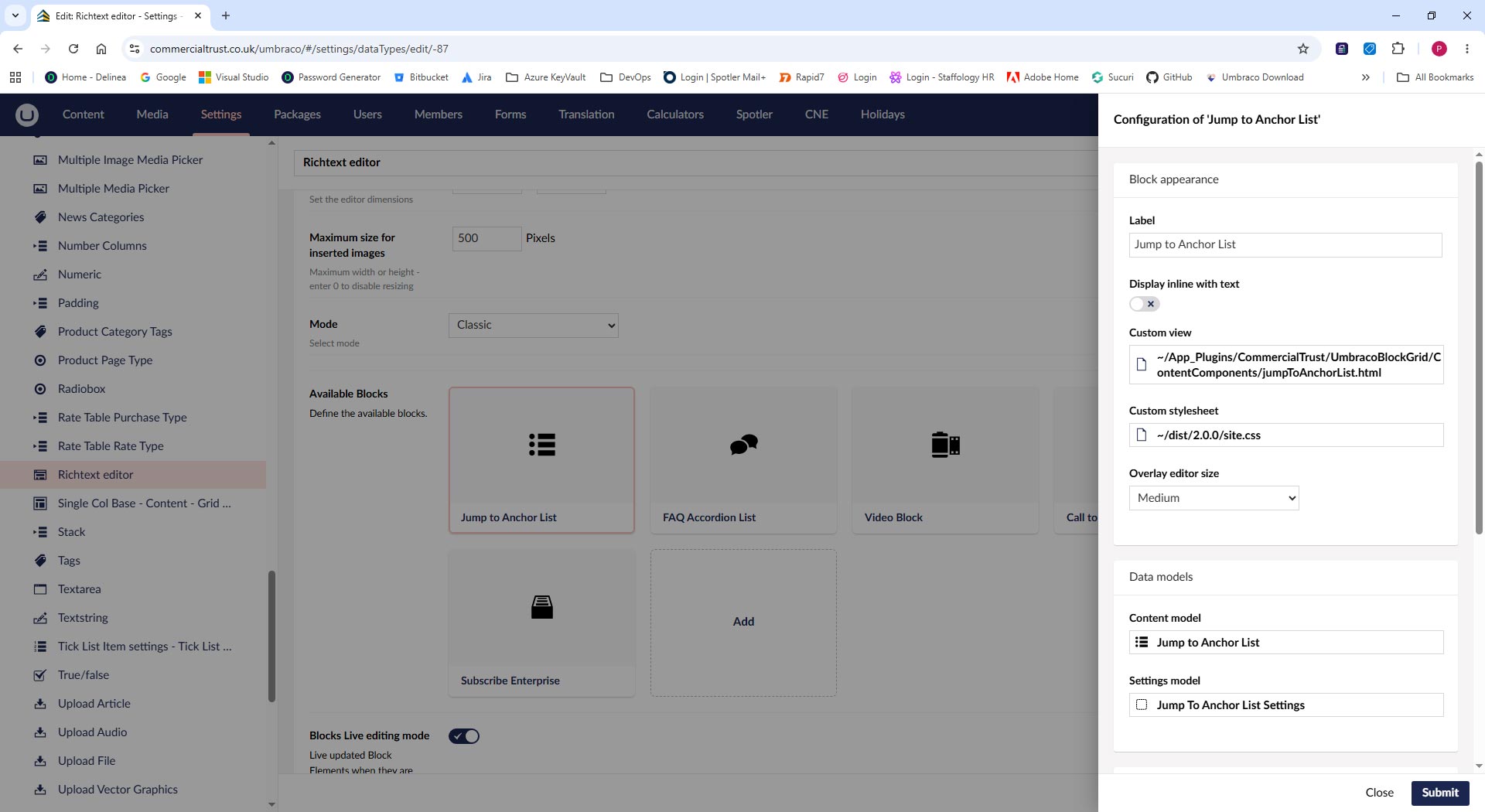

To illustrate, here is the option in Umbraco 13:

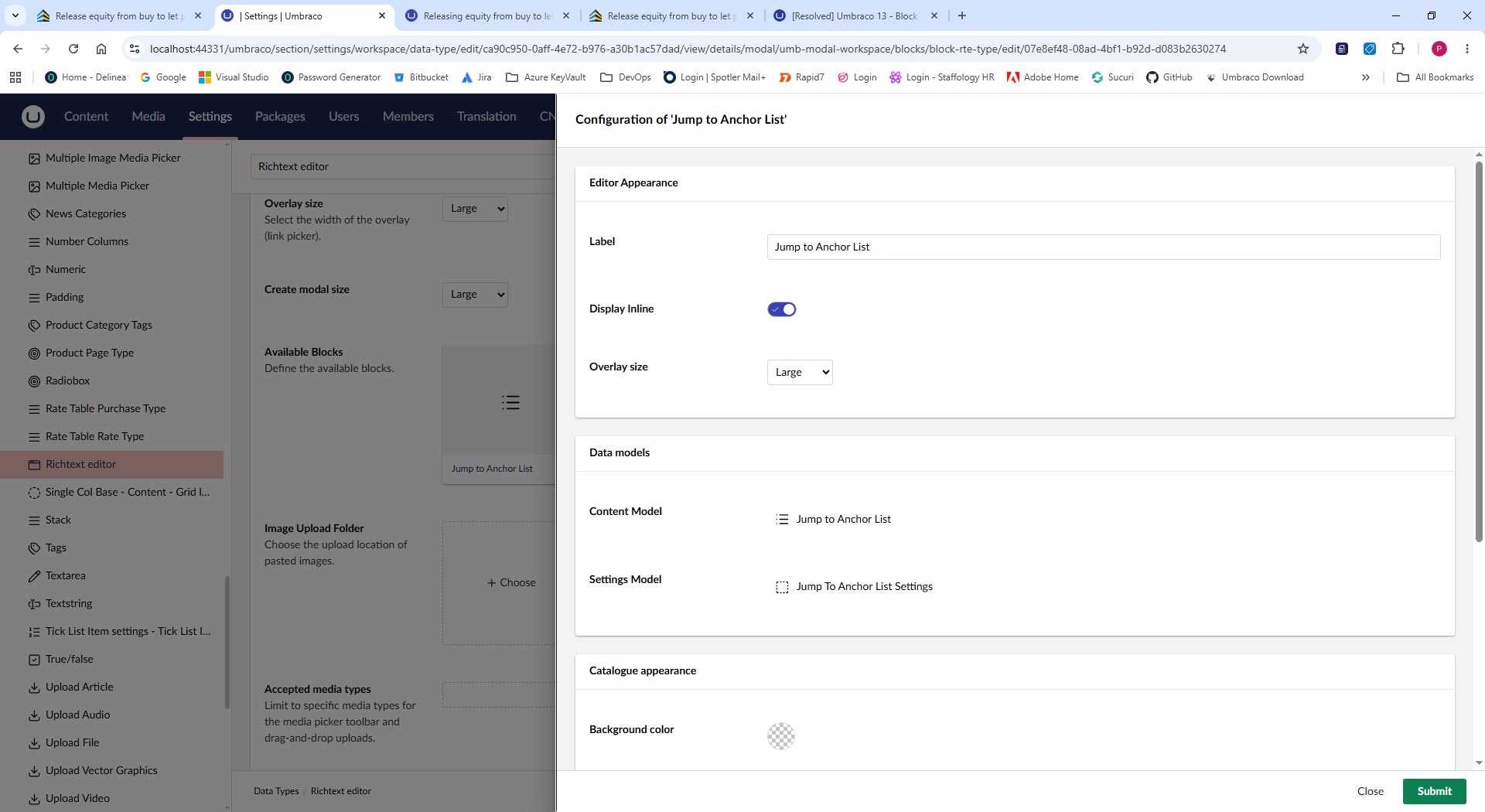

Here shows the option is missing in Umbraco 17:
Thank you,
Kind regards,
Pete
The option hasn’t gone away, it’s just moved. The file-path picker in the UI was an AngularJS thing from the old backoffice, and that’s all gone in v14+. Custom block views are now registered as a backoffice extension using a Web Component instead.
You need two things: a Web Component file and an entry in your umbraco-package.json.
The component itself looks something like this:
import { html, customElement, LitElement, property, css } from '@umbraco-cms/backoffice/external/lit';
import { UmbElementMixin } from '@umbraco-cms/backoffice/element-api';
import type { UmbBlockEditorCustomViewElement } from '@umbraco-cms/backoffice/block-custom-view';
import type { UmbBlockDataType } from '@umbraco-cms/backoffice/block';
@customElement('my-block-custom-view')
export class MyBlockCustomView extends UmbElementMixin(LitElement) implements UmbBlockEditorCustomViewElement {
@property({ attribute: false })
content?: UmbBlockDataType;
override render() {
return html`<p>${this.content?.heading}</p>`;
}
}
export default MyBlockCustomView;
The content property maps directly to the properties on your Element Type, so just swap out heading for whatever aliases you have.
Then register it in umbraco-package.json:
{
"name": "My.BlockViews",
"extensions": [
{
"type": "blockEditorCustomView",
"alias": "my.blockEditorCustomView.MyBlock",
"name": "My Block Custom View",
"element": "/App_Plugins/my-block-view/dist/my-block-custom-view.js",
"forContentTypeAlias": "myElementTypeAlias",
"forBlockEditor": "block-rte"
}
]
}
The important bit for RTE blocks specifically is "forBlockEditor": "block-rte" — it’s easy to miss because most of the docs examples show "block-list". Both forContentTypeAlias and forBlockEditor are optional and also accept arrays, so if you want the same view to work across multiple editors you can do ["block-list", "block-grid", "block-rte"].
The docs have a full walkthrough at Custom Views for Block List | CMS | Umbraco Documentation — the tutorial uses Block List as the example but the approach is identical for RTE blocks, just use block-rte as above.
