Media File System doesn't work for backoffice logo and background

Questions
1

After the migration to v17 we had to reimplement the opensource AWS S3 Media File System Provider which is practically a copy of Azure implementation of a storage provider . It works good, the media can be uploaded and is visible in the backoffice, works as expected on FE with crops and everything.

builder.SetMediaFileSystem(provider => provider.GetRequiredService<IAWSS3FileSystemProvider>().GetFileSystem(S3StorageSettings.MediaFileSystemName));

We set up the custom backoffice background and logo links in appsettings (the configured files exists in S3):

"LoginBackgroundImage": "/media/21qljjy3/background.png",
"LoginLogoImage": "/media/iymp1133/logo.svg",

but the images failed to load. It seems that the BackOfficeGraphicsController controller doesn’t respect the media file system.

Is this a bug, intentional behaviour or did I register my media file provider in a wrong way?

Here is the method that serves the images in the abovementioned controller:

private IActionResult HandleFileRequest(string virtualPath)
{
    var filePath = $"{Constants.SystemDirectories.Umbraco}/{virtualPath}".TrimStart(Constants.CharArrays.Tilde);
    IFileInfo fileInfo = _webHostEnvironment.WebRootFileProvider.GetFileInfo(filePath);

    if (fileInfo.PhysicalPath is null)
    {
        return NotFound();
    }

    if (_contentTypeProvider.TryGetContentType(fileInfo.PhysicalPath, out var contentType))
    {
        Stream fileStream = fileInfo.CreateReadStream();
        return File(fileStream, contentType);
    }

    return StatusCode(StatusCodes.Status412PreconditionFailed);
}
2

Quite a large thread here.. and a solution?

3

It works fine if I have the images in the solution and in its wwwroot directory, but doesn’t work if I try to reference the images that reside in S3 media file system. So the linked discussion doesn’t really help.

4

Ah yes right there infront of us.. the handler should be using MediaFileManager

The recommended approach to obtain a file’s content as a stream is to utilize the MediaFileManager . It is advised to avoid reading the file directly from the server using methods like Server.MapPath . This will ensure that, regardless of the file system provider, the stream will be returned correctly.

FileSystemProviders Configuration | CMS | Umbraco Documentation

As it’s only using fileInfo then the file has to physically exist on the disk in wwwroot.
Looks like by design.. but might be worth raising an issue/pr to alter to MediaFileManager which would support local and remote images for this?

I wonder if you could hack around it by adding a mediaSaved Notification handler to copy from aws to the wwwroot?
Or maybe with middleware intercept/proxy the call to the management api endpoints?

/umbraco/management/api/v1/security/back-office/graphics/login-background
/umbraco/management/api/v1/security/back-office/graphics/login-logo
/umbraco/management/api/v1/security/back-office/graphics/login-logo-alternative

and implement your own handler?

using Microsoft.AspNetCore.Mvc;
using Umbraco.Cms.Api.Management.Controllers;
using Umbraco.Cms.Api.Management.Routing;
using Umbraco.Cms.Core.IO;

namespace MyProject.Controllers;

// We use the exact same route as the core API to intercept it
[ApiExplorerSettings(GroupName = "Security")]
[VersionedApiBackOfficeRoute("security/back-office/graphics/login-background")]
public class CustomLoginBackgroundController : ManagementApiControllerBase
{
    private readonly MediaFileManager _mediaFileManager;

    public CustomLoginBackgroundController(MediaFileManager mediaFileManager)
    {
        _mediaFileManager = mediaFileManager;
    }

    [HttpGet]
    [ProducesResponseType(typeof(FileStreamResult), 200)]
    public async Task<IActionResult> GetBackground()
    {
        // 1. Logic to get your specific Media path (e.g., from a constant or setting)
        // Hardcoded example path, but you could fetch this from IMediaService
        var mediaPath = "media/12345/my-blob-bg.jpg";

        if (_mediaFileManager.FileSystem.FileExists(mediaPath))
        {
            // 2. This works with Blob Storage because MediaFileManager
            // uses the underlying IFileSystem (Azure/S3) provider.
            var stream = _mediaFileManager.FileSystem.OpenFile(mediaPath);
            return File(stream, "image/jpeg");
        }

        return NotFound();
    }
}

Or could css come to the rescue… (add as a simple package?)

:root {
  --umb-login-image: url('/media/iymp1133/logo.svg);
}
1 Like
5

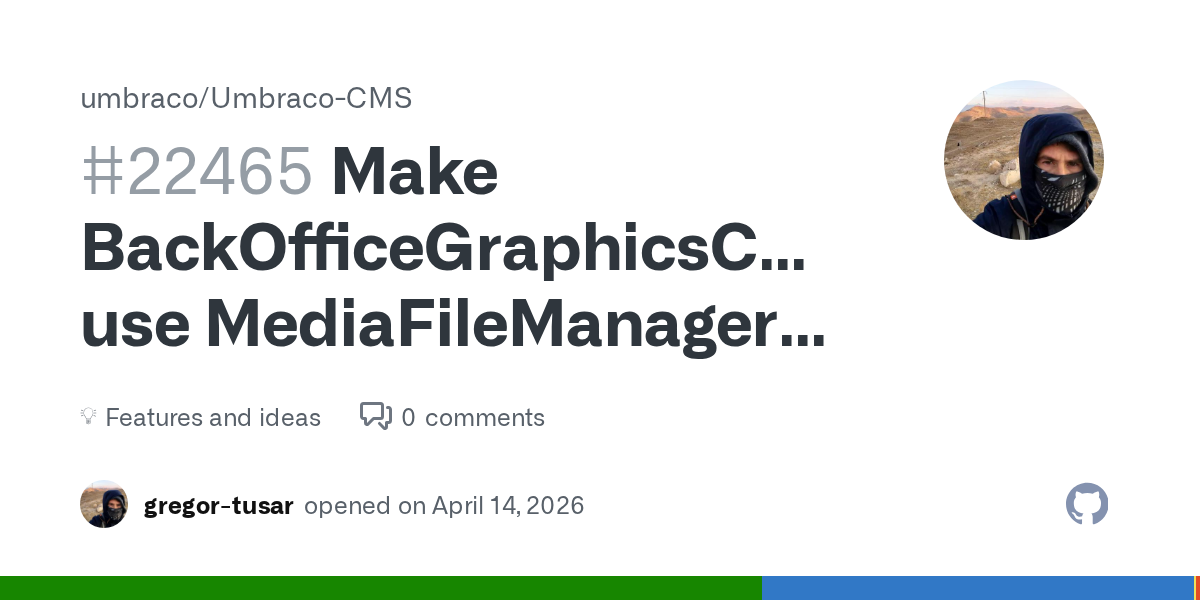

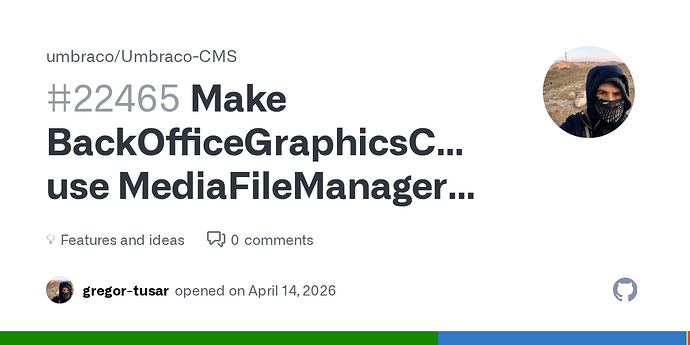

Opened Features or ideas disucssion:
