Default Media types not working after upgrade

Questions
1

I have upgraded a site - originally 8 then upgraded to 10 then to 13.

According to Default Data/Media Types | Umbraco CMS
Making the data types and media types myself should work. However it doesn’t - e.g. SVG uploads are recognised as files, clicking Media - Create shows only File, Folder, Image.

Is there something I missed?
Images attached show settings I have set up

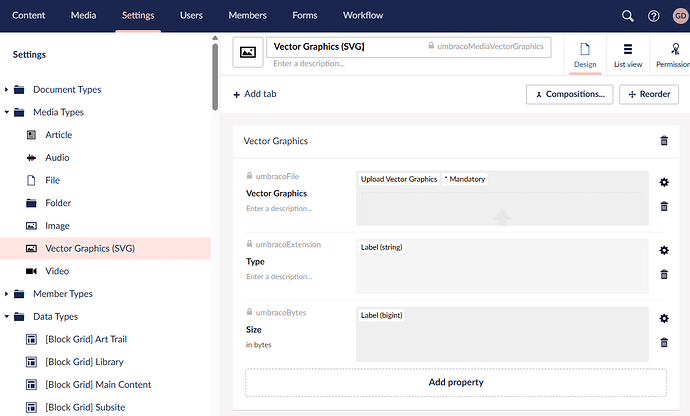

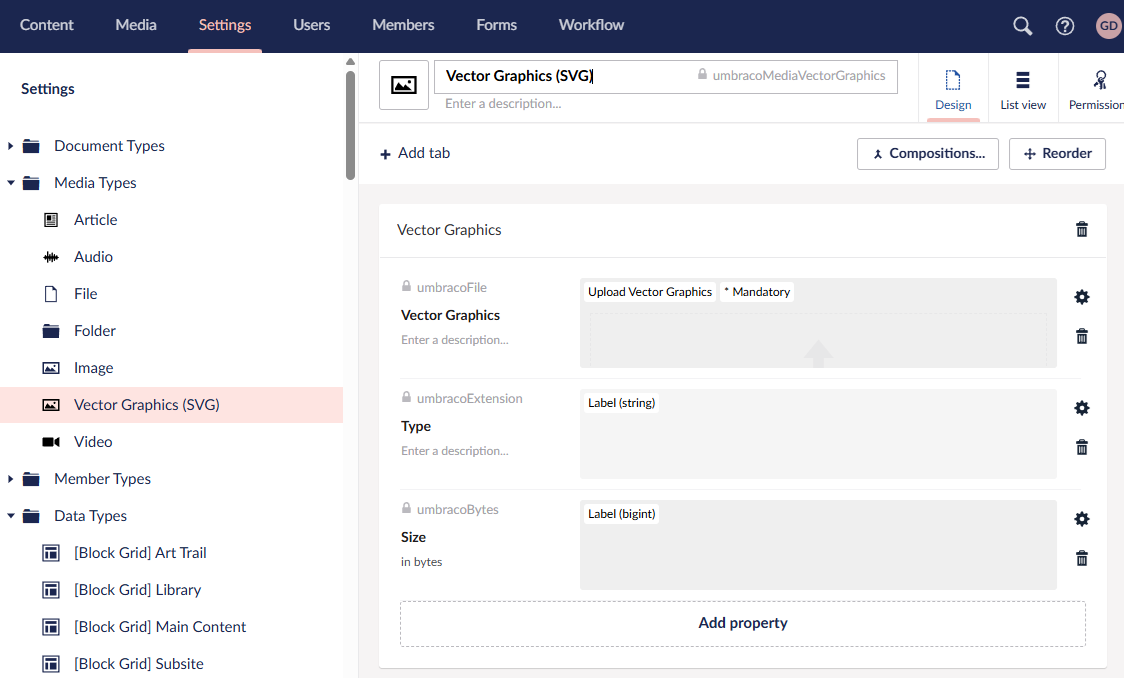

undefined
undefined1139×549 44.7 KB

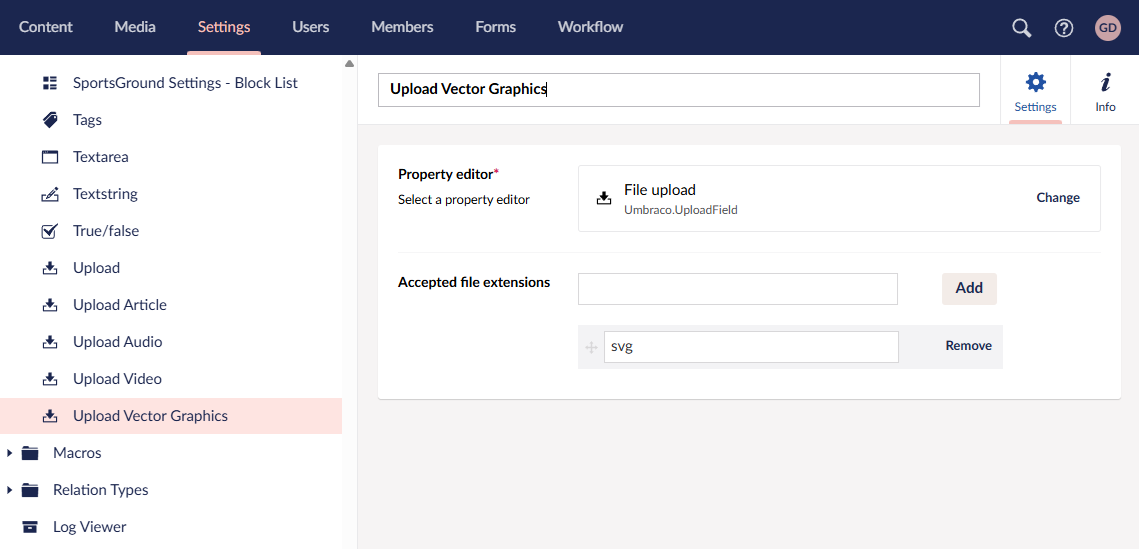

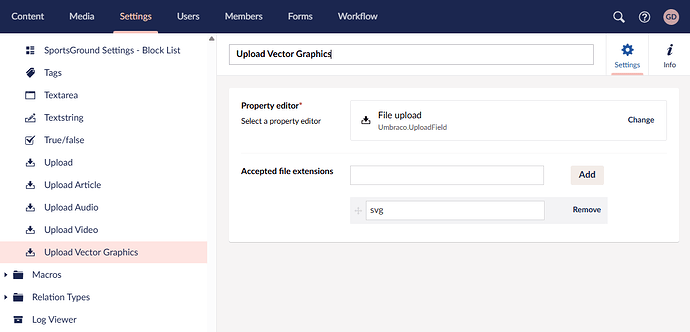

MediaTypeUploadVectorImage
MediaTypeUploadVectorImage1124×678 64.6 KB

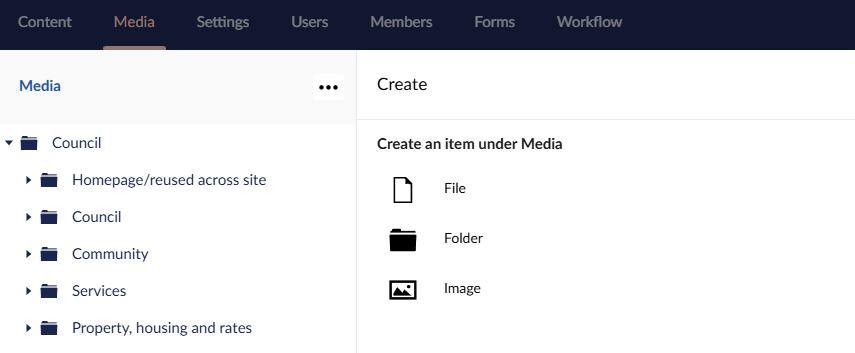

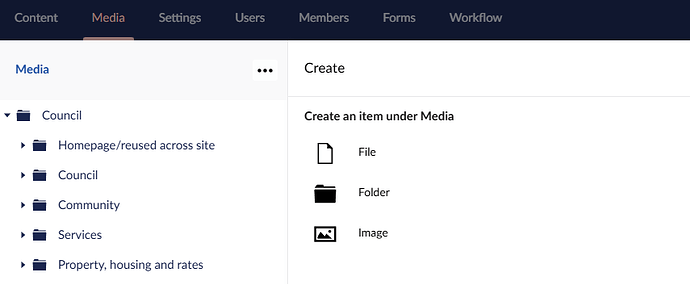

MediaCreateImage
MediaCreateImage855×353 21.3 KB

2

After some more investigation I found the answer is YES there is something that I missed!

It is not in the documentation (maybe it should be)

You have to set Permission to Allow as Root

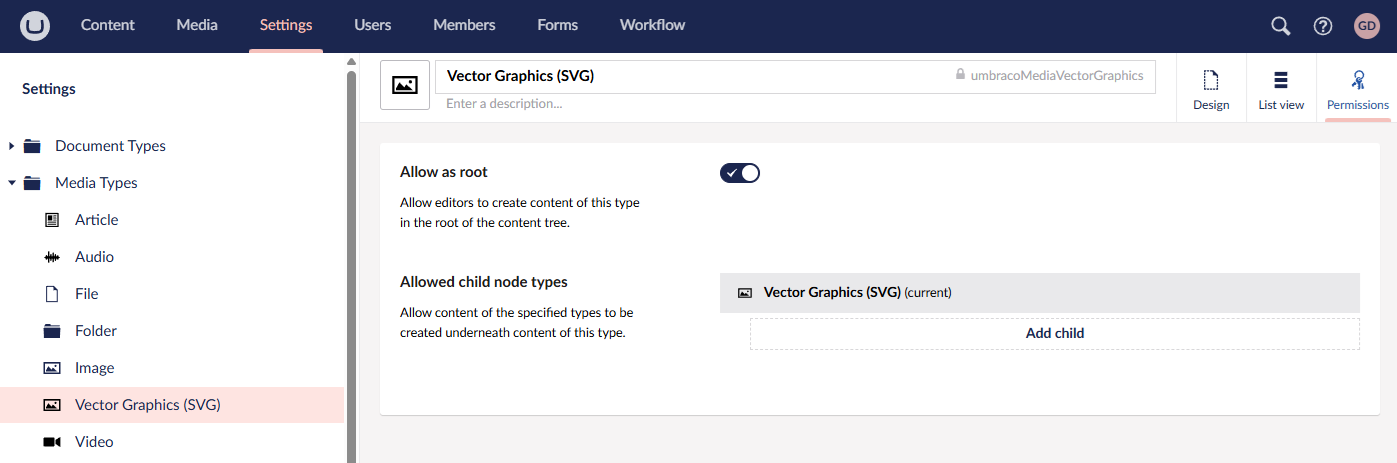

A settings page shows options for Vector Graphics media type including whether to allow it as a root media type and which node types can be used as children. (Captioned by AI)
A settings page shows options for Vector Graphics media type including whether to allow it as a root media type and which node types can be used as children. (Captioned by AI)1397×463 52.2 KB

3

Also you need to set the existing Folder media type to allow each of those new media types as children

4

Are you using uSync? I’ve had instances where upgrades would work great, only to be overridden by what is in the uSync files…
