Cannot render html inside a LIT element using override render()

charlesa-ccs · October 28, 2025, 4:00pm

Hello,

I am trying to recreate a custom property in Umbraco 17 using typescript. I have the component working in Umbraco 13 using Angular.

The issue I have at the moment is I cannot render the html I get back from my API call. either in the override render() on in the template I created. I can render text though :/.

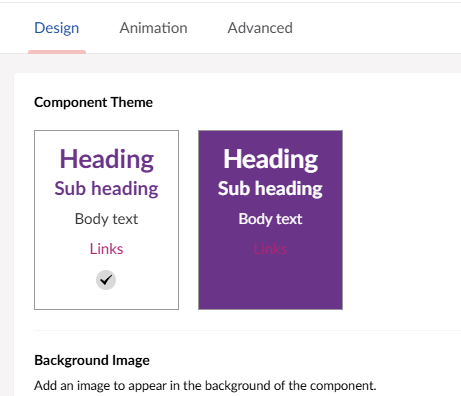

Umbraco 13 example

I have added the class that extends the LitElement and the ButtonTemplate class.

Hopefully someone can help, if you need anything else please let me know. I would be very grateful for any ideas

LitElement

import type { UmbPropertyEditorUiElement } from '@umbraco-cms/backoffice/property-editor';
import { LitElement, customElement, html, property } from '@umbraco-cms/backoffice/external/lit';
import type { Settings } from './Settings';
import { http } from './Http';
import type { HttpResponse } from './HttpResponse';
import { ButtonTemplate } from './ButtonTemplate';

@customElement('my-suggestions-property-editor-ui')
export default class MySuggestionsPropertyEditorUIElement extends LitElement implements UmbPropertyEditorUiElement {

    public htmlButtonElement!: HTMLButtonElement;
    public button = '';
    constructor() {
        super();

        getHtmlButtonElement().then(settings => {
            this.htmlButtonElement = settings!;

            console.log(settings);
        });
    }

    @property({ type: String })
    public value = '';


    override render() {


        getHtmlButtonElement().then(settings => {
            this.htmlButtonElement = settings!;
            this.button = this.htmlButtonElement.innerHTML;


        });

        return html`<uui-button id="charlie" class="element charlie">${this.button}#help  </uui-button>`;
    }
}

async function getHtmlButtonElement() {

    let response: HttpResponse<Settings>;

    try {
        response = await http<Settings>("/Theme/ComponentSettings/");
        let settings = response.parsedBody!;
        if (!response.ok)
        {
      throw new Error(`Error! status: ${response.status}`);
    }

        const button = document.createElement('button')!;
        console.log("1", response);
        const buttonTemplate = new ButtonTemplate(button);
        console.log("2", response);
        let container = buttonTemplate.render(settings);
        console.log("3", response);
        console.log("response", response);
        return container;

  } catch (response) {
        console.log("Error", response);
    }


}

declare global {
    interface HTMLElementTagNameMap {
        'my-suggestions-property-editor-ui': MySuggestionsPropertyEditorUIElement;
    }
}

ButtonTemplate.ts

import type { Settings } from './Settings';
export class ButtonTemplate {
    constructor(private container: HTMLButtonElement) { }

    render(items: Settings) {
        const button = document.createElement('button');
        const outerDiv = document.createElement('div');
        const pHeadingColor = document.createElement('p');
        const pSubHeadingColor = document.createElement('p');
        const pTextColor = document.createElement('p');
        const pOuterLinkColor = document.createElement('p');
        const spanLinkColour = document.createElement('span');

        pHeadingColor.innerText = 'Heading';
        pSubHeadingColor.innerText = 'Sub Heading';
        pTextColor.innerText = 'Body Text';
        spanLinkColour.innerText = 'Links';

        pOuterLinkColor.append(spanLinkColour);

        outerDiv.append(pHeadingColor);
        outerDiv.append(pSubHeadingColor);
        outerDiv.append(pTextColor);
        outerDiv.append(pOuterLinkColor);
        button.append(outerDiv);

        items.componentSettingsObjects.forEach(function (value) {
            console.log(value.id);
            pHeadingColor.innerText = value.id.toString();
        })

        outerDiv.append(pHeadingColor);
        button.append(outerDiv);
        this.container.append(button);

        return this.container;
    };
}

Luuk · October 28, 2025, 4:21pm

My first guess would be that getHtmlButtonElement() is async and I don’t think this works in the render() method, which is not async as far as I know.

I’d better of getting your data from the API at the connectCallback function and then rerender when the data is available.

charlesa-ccs · October 28, 2025, 4:38pm

Thanks @Luuk. Do you have an example of how this would work. If I override the connectCallback function, would I get the data and then return html? Or do I call update within the connectCallback function which calls the render function

jacob · October 28, 2025, 7:52pm

Use @lit/task to do this. You install it through npm, and you should be able to render async data.

npm i --save @lit/task

Something like this:

import { Task } from '@lit/task';

import type { UmbPropertyEditorUiElement } from '@umbraco-cms/backoffice/property-editor';
import { LitElement, customElement, html, property } from '@umbraco-cms/backoffice/external/lit';
import type { Settings } from './Settings';
import { http } from './Http';
import type { HttpResponse } from './HttpResponse';
import { ButtonTemplate } from './ButtonTemplate';

@customElement('my-suggestions-property-editor-ui')
export default class MySuggestionsPropertyEditorUIElement extends LitElement implements UmbPropertyEditorUiElement {
	@property({ type: String })
	public value = '';

	private _buttonTask = new Task(this, {
		task: async ([value], { signal }) => {
			console.log('Received value', value);
			const response = await fetch(`/Theme/ComponentSettings/${value}`, { signal });
			if (!response.ok) {
				throw new Error(`Error! status: ${response.status}`);
			}

			const settings = await response.json();
			const button = document.createElement('button')!;
			console.log('1', response);
			const buttonTemplate = new ButtonTemplate(button);
			console.log('2', response);
			const container = buttonTemplate.render(settings);
			console.log('3', response);
			console.log('response', response);
			return container;
		},
		args: () => [this.value], // <-- Listening for this.value, but can also be empty to autorun with no value
	});

	override render() {
		return this._buttonTask.render({
			pending: () => html`<span>Loading...</span>`,
			error: (error: any) => html`<span>Error: ${error.message}</span>`,
			complete: (button: HTMLElement) => {
				return html`<uui-button id="charlie" class="element charlie">${button}#help </uui-button>`;
			},
		});
	}
}

declare global {
	interface HTMLElementTagNameMap {
		'my-suggestions-property-editor-ui': MySuggestionsPropertyEditorUIElement;
	}
}

I tried rewriting your component, but obviously, I do not know your business logic, so errors may occur. But try it out

charlesa-ccs · October 29, 2025, 9:30am

Thanks so much @jacob I will give this a try. Really grateful

nielslyngsoe · October 29, 2025, 9:40am

Hi @charlesa-ccs

Notice the Lit Task helper makes it easier for you to await a promise and react when it’s fulfilled. Which can be a great help if you like that style of coding, so go ahead and use that solution.

I just wanted to add, looking at your initial code snippet, that it could hint that you haven’t fully comprehended how Lit works, so to help you with your future projects, I just wanted to focus a bit on how the render method of Lit works, which I think will help you next time.

The Lit render is executed every time Lit detects a change of the properties of the component. But not any property, only the properties that Lit is watching. To mark properties as reactive(once that Lit will watch) we use the @property & @state decorators.

You already use the @property one for value, so when the value is changed, the render will be exeucted.

In the above case, nothing triggers a render, for when the htmlButtonElement gets set. Simply the htmlButtonElement is not being watched by Lit. I would add a @state decorator on the property declaration. We use @state for internal properties and @property for public properties.

And once thats done, your render method will be executed when it changes. And then no need to call getHtmlButtonElement ()... etc. in your render method.

I hope that explanation helps you understand what is going on and moving forward with more custmozations, good luck.

Also notice you can read everything about lit here: Components overview – Lit

charlesa-ccs · October 29, 2025, 9:56am

Thanks @nielslyngsoe yes I am a beginner trying to learn :). I was trying to work out @property and @state were for.

Ok so If I have a public property of ‘name’ that uses @property and a private property of ‘htmlButtonElement’ that uses a @state. When either of these two values get changed the render method will be called and then when ever I am returning, in my case html with be re rendered on to the page?

When I select either one of the buttons, how do I store that property information to be used in code? For example I want to show this information on the front end of the website and need to know which button the user selected? I cannot see anything in the docs about this.

charlesa-ccs · October 29, 2025, 10:01am

Hi @jacob , I have two errors, which I will try and fix. But if you have any ideas

Type TaskFunctionOptions is missing the following properties from type ‘AbortSignal’: aborted….

const response = await fetch(`/Theme/ComponentSettings/${value}`, { signal });

Type (‘error:Error) => TemplateResult<1> is not assignable to type ‘(error:unknown) => unknown’;

error: (error: Error) => html<span>Error: ${error.message}</span>,

jacob · October 29, 2025, 12:45pm

Try not to type-cast the error:

error: (error: any) => html`<span>Error: ${error.message}</span>`,

Set the error to any to avoid type-cast errors.

Not sure about this error, but try without the signal if it keeps failing.

charlesa-ccs · October 29, 2025, 1:24pm

Thanks, its working and compiling now :D, so I think the first part is complete . Do you know how I store which the user has selected?. In Angular I had to set the model value.

jacob · October 29, 2025, 2:01pm

The replacement is to send out the “change” event. Check this tutorial out how they send the change event in the #onInput method:

The tutorial also shows you how to process the data on the server.

charlesa-ccs · October 29, 2025, 2:28pm

Thanks @jacob that’s the one I have been using, I will look again and see if I can find it

charlesa-ccs · October 29, 2025, 4:51pm

Hi sorry one more question. If I create a method #onClick, how would this work given my html is created in a class called ButtonTemplate?.

What I am confused about is I need to, I think, is add an event to the onclick event of the button. Thus the . So that I can update value which calls the render method and the button the user clicked on in Umbraco is changed. But I cannot work out how I would add the event to the button? as the event needs to be in the MySuggestionsPropertyEditorUIElement class?

Is this correct and does that mean I cannot use the ButtonTemplate? I presume I am missing something ?

The only other way I can think of is to get the button and add an event listener in the constructor on the MySuggestionsPropertyEditorUIElement class and do it that way.

jacob · October 30, 2025, 7:51am

Change your task to return the JSON instead:

	private _buttonTask = new Task(this, {
		task: async ([value], { signal }) => {
			console.log('Received value', value);
			const response = await fetch(`/Theme/ComponentSettings/${value}`, { signal });
			if (!response.ok) {
				throw new Error(`Error! status: ${response.status}`);
			}

			const settings = await response.json();
			return settings;
		},
		args: () => [this.value], // <-- Listening for this.value, but can also be empty to autorun with no value
	});

Then change your render method to call the ButtonTemplate.render and add the onclick event with the id or whatever you need to save:

	override render() {
		return this._buttonTask.render({
			pending: () => html`<span>Loading...</span>`,
			error: (error: any) => html`<span>Error: ${error.message}</span>`,
			complete: (settings: Settings) => { // <-- Receives Settings instead
                const button = document.createElement('button');
                const buttonTemplate = new ButtonTemplate(button);
			    const container = buttonTemplate.render(settings);
				return html`<uui-button
                  @click=${() => this.#onClick(settings.id)} // <-- add @click event with id of the selected button
                  id="charlie"
                  class="element charlie">
                    ${container}#help // <-- Render the container instead
                  </uui-button>`;
			},
		});
	}

Lastly, add an onclick method that stores the value and sends the event:

#onClick(buttonId: any) {
  this.value = buttonId;
  this.dispatchEvent(new UmbChangeEvent());
}

charlesa-ccs · October 30, 2025, 9:01am

Thanks @jacob , now you have mentioned that you can imagine me face palming myself! :P. I don’t know how I did not notice this yesterday! Thanks so much again.

jacob · October 30, 2025, 10:14am

All good, happy to help!

charlesa-ccs · October 30, 2025, 11:47am

Ok maybe one more question

So I see what you are saying here, however I am using a HtmlButtonElement. I have tried everything I can thing on. click, onclick, addEventListener to add the event to the HtmlButtonElement with no luck. I have also tried creating the html but that again did not work.

The ‘Settings’ object contains multiple ComponentSettingsObjects which contain the button information I need. The ‘Settings’ object is just a wrapper.

Inside the ButtonTemplate I am doing a foreach

items.componentSettingsObjects.forEach((value) => {} which returns all the html I need. X number of Buttons.

I hope that makes some sense. I can post code if its easier to understand

suggestions-property-editor-ui.element.ts

import { Task } from '@lit/task';
import type { UmbPropertyEditorUiElement } from '@umbraco-cms/backoffice/property-editor';
import { LitElement, customElement, html, property } from '@umbraco-cms/backoffice/external/lit';
import { ButtonTemplate } from './ButtonTemplate';
import type { Settings } from './Settings';
import { UmbChangeEvent } from '@umbraco-cms/backoffice/event';


@customElement('suggestions-property-editor-ui.element')
export default class MySuggestionsPropertyEditorUIElement extends LitElement implements UmbPropertyEditorUiElement {

    @property({ type: String })
    public value = '';

    private _buttonTask = new Task(this, {
        task: async (value) => {

            const response = await fetch(`/Theme/ComponentSettings/${value}`);

            if (!response.ok) {
                throw new Error(`Error! status: ${response.status}`);
            }


            const settings = await response.json() as Settings;
            return settings;
        },

        args: () => [this.value], // <-- Listening for this.value, but can also be empty to autorun with no value
    });

    #onClick(buttonId: any) {
        this.value = buttonId;
        this.dispatchEvent(new UmbChangeEvent());
    }

    override render() {
        return this._buttonTask.render({
            pending: () => html`<span>Loading...</span>`,
            complete: (settings: Settings) => {
                const htmlElement = document.createElement('div');
                htmlElement.className = "ccs-component-colour-swatch";
                const buttonTemplate = new ButtonTemplate(htmlElement);
                const container = buttonTemplate.render(settings);
                return html`${container}`;
            },
            error: (error: any) => html`<span>Error: ${error.message}</span>`,
        });
    }
}

declare global {
    interface HTMLElementTagNameMap {
        'my-suggestions-property-editor-ui': MySuggestionsPropertyEditorUIElement;
    }
}

ButtonTemplate.ts

import type { Settings } from './Settings';
import { UUIButtonElement } from '@umbraco-cms/backoffice/external/uui';
export class ButtonTemplate {
    constructor(private container: HTMLDivElement) { }


    render(items: Settings) {

        let outerButtonElement!: UUIButtonElement;
        items.componentSettingsObjects.forEach((item) => {
            outerButtonElement = document.createElement('uui-button');
            outerButtonElement.type = "button";
            outerButtonElement.style.backgroundColor = item.backgroundColor;

            const outerDivElement = document.createElement('div');
            const pHeadingColor = document.createElement('p');
            const pSubHeadingColor = document.createElement('p');
            const pTextColor = document.createElement('p');
            const pOuterLinkColor = document.createElement('p');
            const spanLinkColour = document.createElement('span');

            pHeadingColor.innerText = 'Heading';
            pHeadingColor.style.color = item.headingColor;
            pHeadingColor.style.fontWeight = "bold";

            pSubHeadingColor.innerText = 'Sub Heading';
            pSubHeadingColor.style.color = item.subHeadingColor;
            pSubHeadingColor.style.fontWeight = "bold";

            pTextColor.innerText = 'Body Text';
            pTextColor.style.color = item.textColor;
            pOuterLinkColor.append(spanLinkColour);

            outerDivElement.append(pHeadingColor);
            outerDivElement.append(pSubHeadingColor);
            outerDivElement.append(pTextColor);
            outerDivElement.append(pOuterLinkColor);
            outerButtonElement.append(outerDivElement);
            this.container.append(outerButtonElement);
        });

        return this.container;
    };
}

Settings.ts

import type { ComponentSettingsObjects } from "./ComponentSettingsObjects";

export interface Settings {
    componentSettingsObjects: ComponentSettingsObjects[];
}

jacob · October 30, 2025, 4:00pm

You could always build the ButtonTemplate in the property editor itself, but since you are already in the deep end, you can forward the onClick method to your ButtonTemplate:

            complete: (settings: Settings) => {
                const htmlElement = document.createElement('div');
                htmlElement.className = "ccs-component-colour-swatch";
                const buttonTemplate = new ButtonTemplate(htmlElement);
                const container = buttonTemplate.render(settings, this.#onClick);
                return html`${container}`;
            },

Then bind a click listener to that:

render(items: Settings, callback: any) {

  let outerButtonElement!: UUIButtonElement;
  items.componentSettingsObjects.forEach((item) => {
    outerButtonElement = document.createElement('uui-button');
    outerButtonElement.addEventListener('click', () => callback(item.id)); // <-- Set an event listener and call the callback with an id or something else
  });
}

Also, you should consider constructing a LitTemplateResult in the ButtonTemplate like you do in the property editor. Something like this could do it:

render(items: Settings, callback: any) {
  return repeat(
    items.componentSettingsObjects,
    item => html`
      <uui-button @click=${() => callback(item.id)} type="button" style=${styleMap({ backgroundColor: item.backgroundColor })}>
        <div>
          <p style=${styleMap({ color: item.headingColor, fontWeight: 'bold' }) }>Heading</p>
          <p style=${styleMap({ color: item.subHeadingColor, fontWeight: 'bold' }) }>Sub Heading</p>
          <p>Body text</p>
      </uui-button>
    `
  );
}

Note, I’m missing a few p and span elements, but you see how you bind the @click listener dynamically here.

charlesa-ccs · October 30, 2025, 4:28pm

Yep, ‘already in the deep end’, I feel more like in the middle of the ocean :’). Would have been easier to build in the ButtonTemplate.

Thanks for this, I will go through and understand what is happening and how it fits together.

I love this as well by the way, it’s so much neater and simpler. Good to know as i have more to do in the future

return repeat( items.componentSettingsObjects, item => html``);

charlesa-ccs · October 30, 2025, 5:00pm

The good news @jacob :’), is that your code is brilliant and works perfectly :D. Slightly less good news is that ‘this’ in the call back in null, which I have a feeling you may say is terminal and ‘build the ButtonTemplate in the property editor itself’
